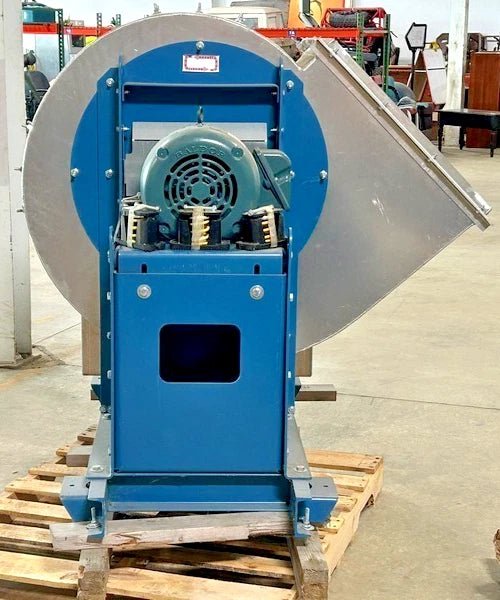

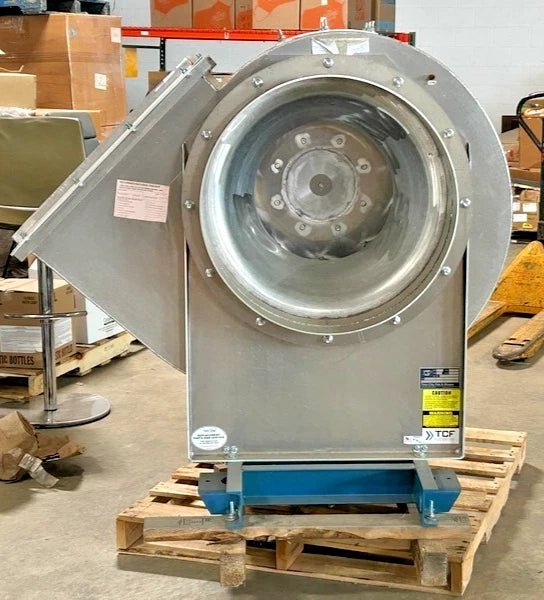

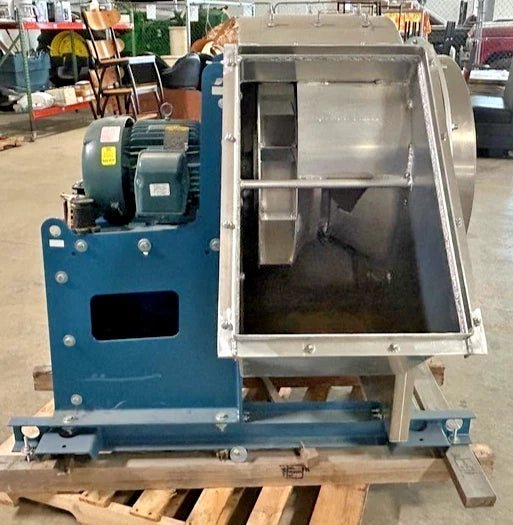

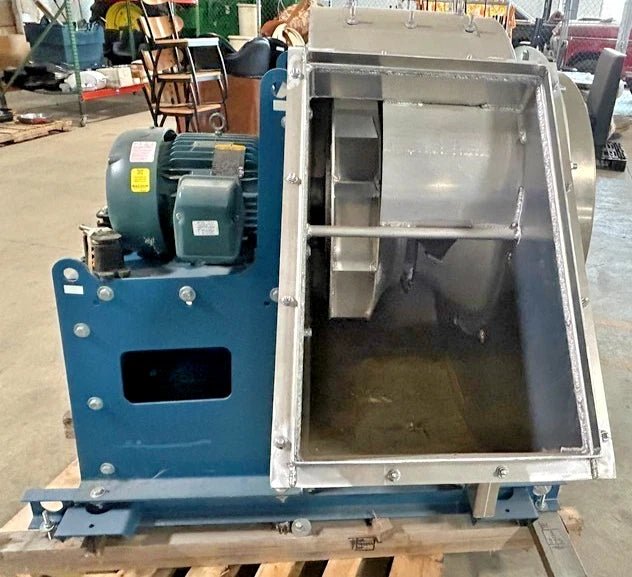

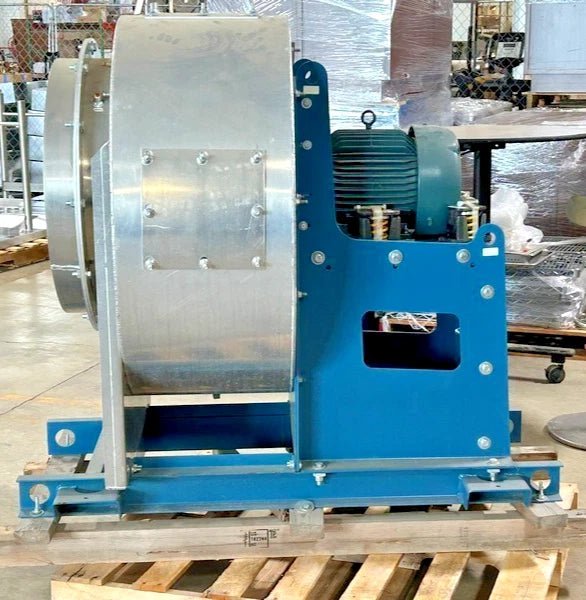

Twin City Fan Industrial Centrifugal Blower Model BC-SW, Class 2, 10HP, Size 245, 2021 MANUFACTURED.

Twin City Fan Industrial Centrifugal Blower Model BC-SW, Class 2, 10HP, Size 245, 2021 MANUFACTURED.

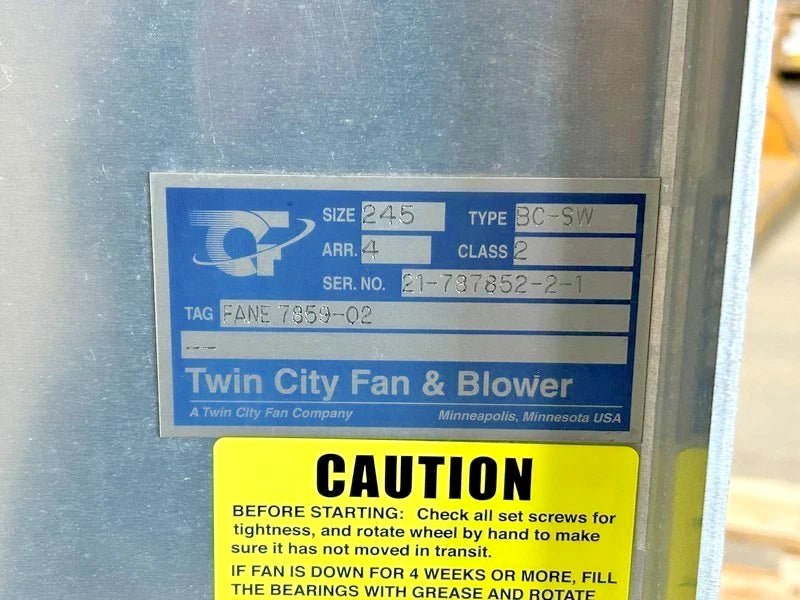

MAKE- TWIN CITY

MODEL# BC-SW

SN# 21-787852-2-1

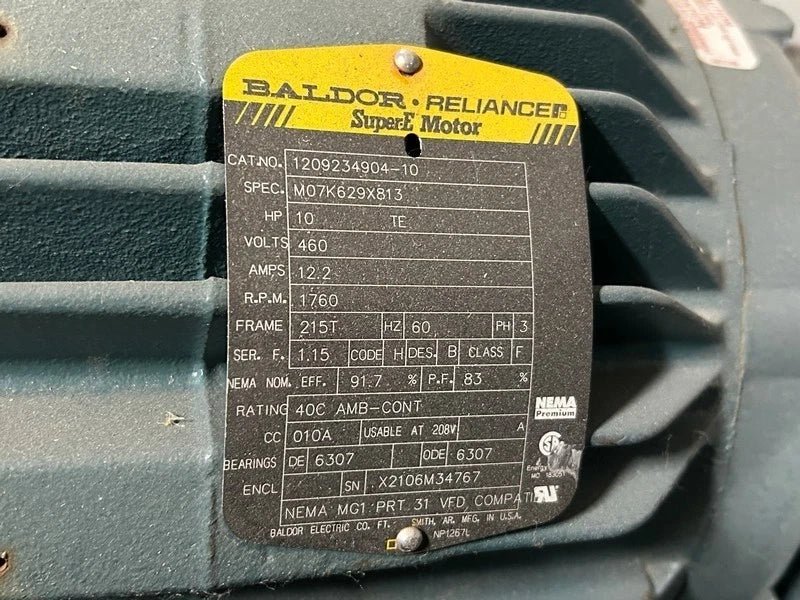

ELECTRICAL INFORMATION

460 V,3 PH, 12.2 AMP, 60HZ

RPM - 1760

WHEEL SIZE - 24.5"

2021 MODEL

For a

Twin City Fan Model BC-SW, Size 245, Class II

 blower with a 10 HP motor, the exact CFM depends on your system's Static Pressure (SP). According to Twin City Fan's Catalog 300, which covers the BC-SW (Single Width, Single Inlet) series, performance is calculated based on these parameters.

Twin City Fan & Blower +4

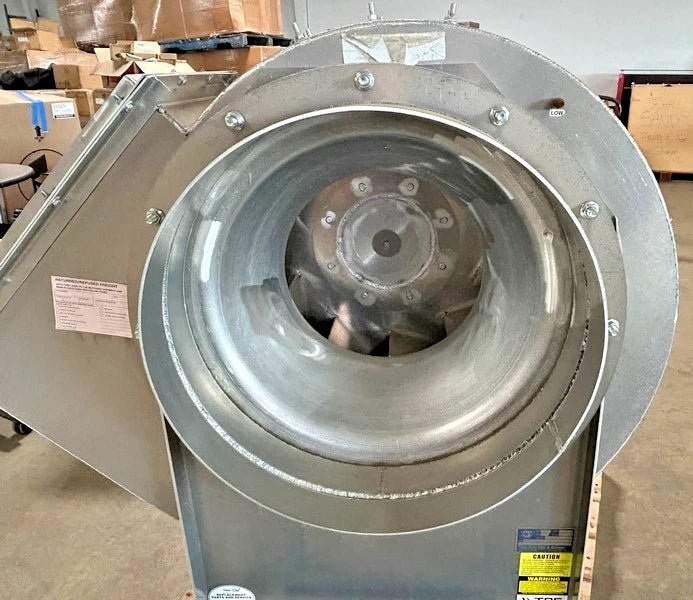

• Size 245 Wheel: This size typically corresponds to a wheel diameter of approximately 24.5 inches.
• Operating Range: A 10 HP motor for this size and class usually operates in the range of 5,000 to 9,000 CFM, depending on the static pressure (typically between 2" and 5" w.g.).
• Performance Limits: Class II construction is rated for higher speeds and pressures than Class I, allowing it to handle up to approximately 20" w.g. across the entire BC-SW line.



• Wheel Type: Flat-blade backward inclined, non-overloading.
• Class II Construction: Designed for moderate pressures and higher rotational speeds compared to Class I.
• Application: Ideal for HVAC, filtration, and industrial exhaust systems
• The dimensions for a

  Twin City Fan (TCF) Model BC-SW, Size 245

   centrifugal blower vary based on its Arrangement (how it’s mounted) and Discharge Position. However, standard nominal dimensions for this size in common arrangements are as follows:


  Primary Dimensions (Size 245)
  • Wheel Diameter: 24.5 inches
  • Approximate Physical Footprint: For typical industrial setups, units of this size often measure roughly 50" x 46" x 47" (Length x Width x Height), though this varies by mounting.
  • Inlet Diameter: Typically matches the wheel size or is slightly larger to accommodate ducting.
  • Outlet Dimensions: For a
    Size 245 BC-SW
    , the discharge area is roughly 17.25" to 18" in one dimension, depending on the specific housing design.
    Twin City Fan & Blower +3


  Key Dimensional Factors
  The total height and width are heavily influenced by the following:
  1. Discharge Angle: Whether it is Upblast, Top Angular Up, Downblast, or Bottom Horizontal changes the total height and depth.
  2. Arrangement:
     • Arrangement 1/9/10: These are belt-driven and typically include a motor pedestal, adding significantly to the width.
     • Arrangement 4: Direct-drive units are more compact as the motor is mounted directly to the fan housing.
  3. Rotation: Class II fans in size 270 and smaller (including your 245) are generally field rotatable, meaning you can adjust the discharge position to fit your space

ITEM CONDITION (USED)

**DISCLOSURE**

ITEM WORKED WHEN REMOVED FROM A CLOSING BUSINESS. PLEASE SEE ALL THE PICTURES FOR MORE DETAILS. BACKGROUND ITEMS IN PICS ARE NOT INCLUDED. THANK YOU.

THE PHYSICAL CONDITION AND ALL PARTS/ ACCESSORIES INCLUDED WITH THIS ITEM, IS AS REPRESENTED IN THESE PHOTOS,SELLING AS SHOWN.

ID- 2560B

LOC- C3/4
